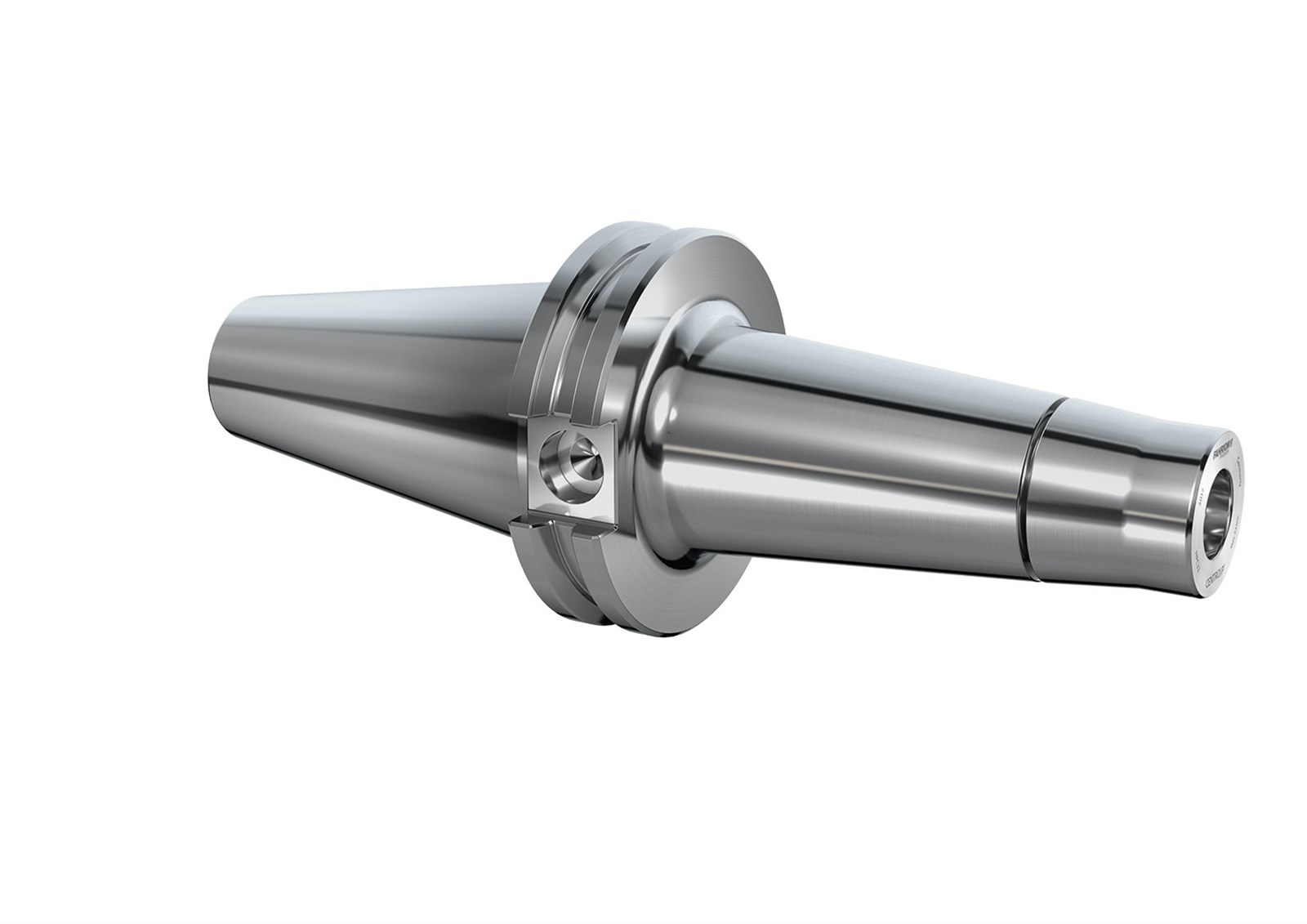

Chucks MPC - Mini Precision
MPC16T-HSS-CAT40-A=4" (AD)

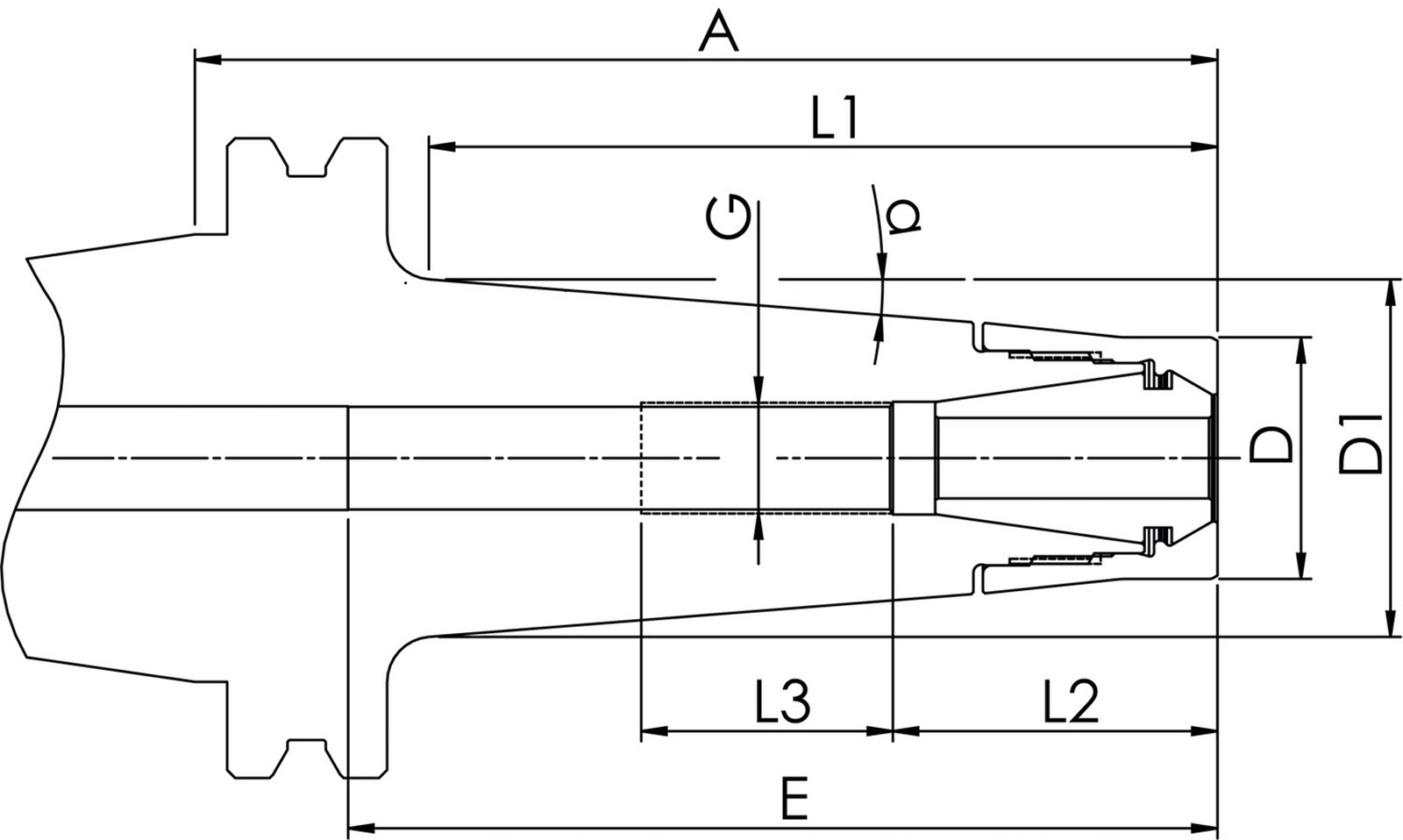

| A | 101,5 mm |
| D = Wrench Ø | 24 mm |
| max. 1/min | 25000 1/min |
| E | 130 mm |
| D1 | 35,5 mm |
| a | 4,5° Grad |
| L1 | 78 mm |
| L2 | 32 mm |
| L3 | 30 mm |
| G | M11x1 |
Note: May include deviations
Chucks MPC - Mini Precision
MPC16T-HSS-CAT40-A=4" (AD)
- Order number: 60643321026
- EAN-NR: 60643321026
- high speed cutting
- very slim
Quantity:
Availability:
Immediately
~ 5 working days
3 weeks
4 weeks
5 weeks
6 weeks
On request
Prices plus VAT plus shipping costs
TECHNICAL DATA
MPC16T-HSS-CAT40-A=4" (AD)
| A | 101,5 mm |
| D = Wrench Ø | 24 mm |
| max. 1/min | 25000 1/min |
| E | 130 mm |
| D1 | 35,5 mm |
| a | 4,5° Grad |
| L1 | 78 mm |
| L2 | 32 mm |
| L3 | 30 mm |
| G | M11x1 |
