Preview: DPC40-HSK-A100-A=160

Preview: DPC40-HSK-A100-A=160

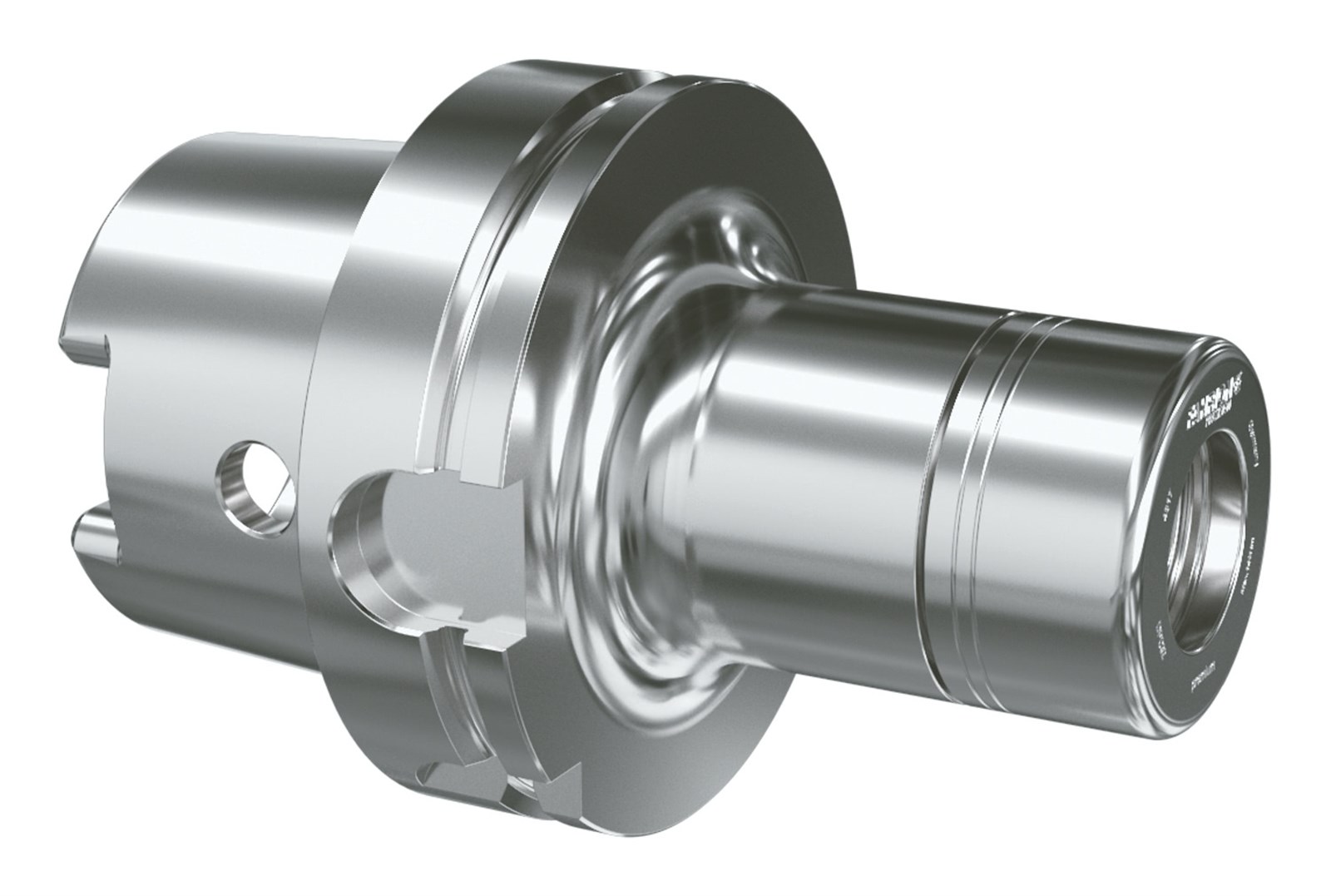

DPC40-HSK-A100-A=160

DPC40-HSK-A100-A=160

A	160 mm
D = Wrench Ø	63 mm
E	90 mm
L1	125 mm
L2	56 mm
L3	35 mm
G	M28x1,5

Note: May include deviations

Order number: 63187301605
EAN-NR: 63187301605

good damping
high holding force
high runout accuracy
rigid
universal

Quantity:

Availability:

Immediately

~ 5 working days

3 weeks

4 weeks

5 weeks

6 weeks

On request

Prices plus VAT plus shipping costs

Multifunctional precision chuck, especially for finishing and HDC milling Cylindrical design... more

Multifunctional precision chuck, especially for finishing and HDC milling
Cylindrical design for less interference contours

Chuck body and clamping nut separately balanced G2,5 at 25.000 1/min or U ≤ 1 gmm

DPC high accuracy clamping nut without clamping bridging. Concentricity of ≤ 3 µm with GERC-HP collets.

Interface:	HSK-A
Size:	100
Length:	> 160 mm
Type:	ER
clamping range:	ER40 - 3-26 mm

Downloads Downloads

PDF

STEP

DXF

TECHNICAL DATA

DPC40-HSK-A100-A=160

A	160 mm
D = Wrench Ø	63 mm
E	90 mm
L1	125 mm
L2	56 mm
L3	35 mm
G	M28x1,5

TECHNICAL DATA

DPC40-HSK-A100-A=160

A	160 mm
D = Wrench Ø	63 mm
E	90 mm
L1	125 mm
L2	56 mm
L3	35 mm
G	M28x1,5
